Scene Settings

All the parameters that define the look and behavior of the whole scene (and not just a single object) are found on the three panels: the Render panel, the Scene panel and the World panel.

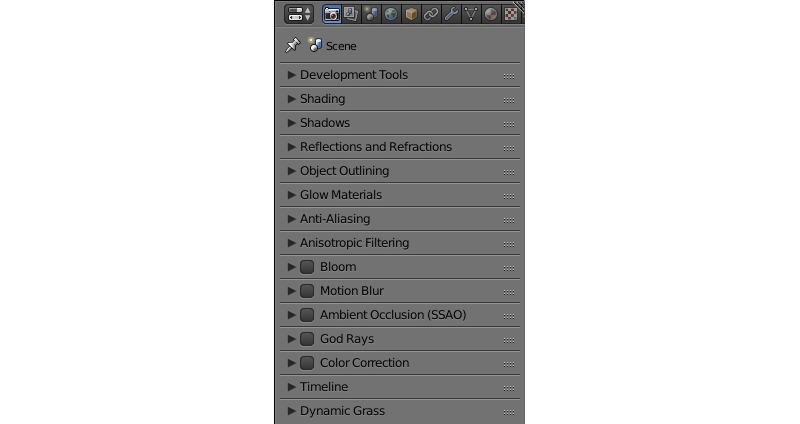

Render Panel

_images/render1.png

All scene parameters that concern the image rendering are found on this panel.

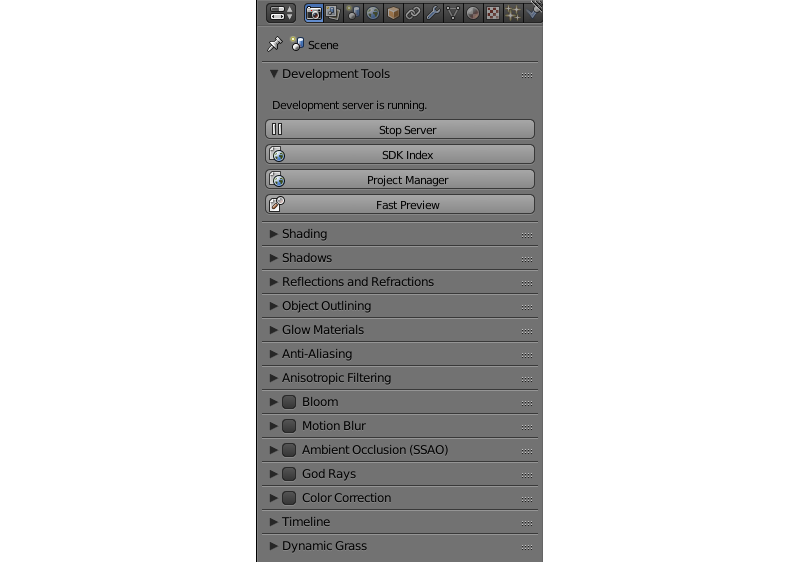

Development Tools

Development Server settings. Described thoroughly in its own section.

_images/render_development_server.png

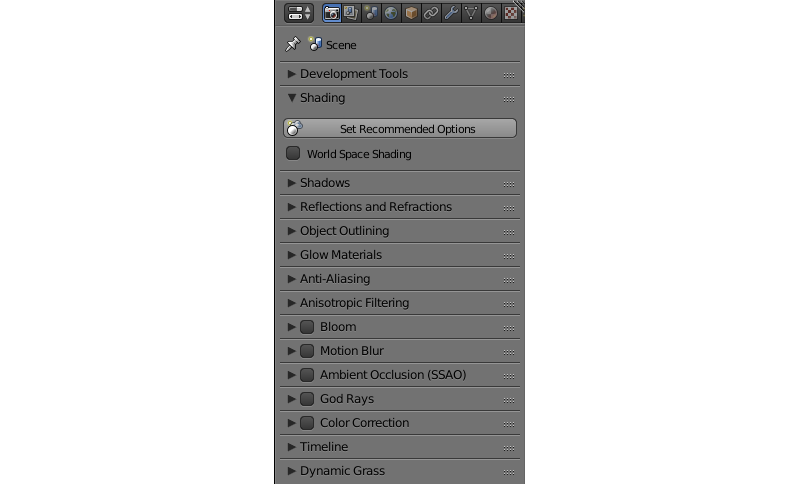

Shading

This panel contains various shading options.

_images/render_shading.png
Set Recommended Options

This button is used to achieve maximum consistency between the look of a 3D scene in Blender viewport and in web browser. Pressing this button:

  • enables World Space Shading,
  • switches material mode to GLSL,
  • switches viewport shading mode to Material and
  • sets the main camera fit to Vertical.
World Space Shading
This option turns on and off World Space Shading (world space interpretation of lighting data will be used for object shading). Disabled by default.

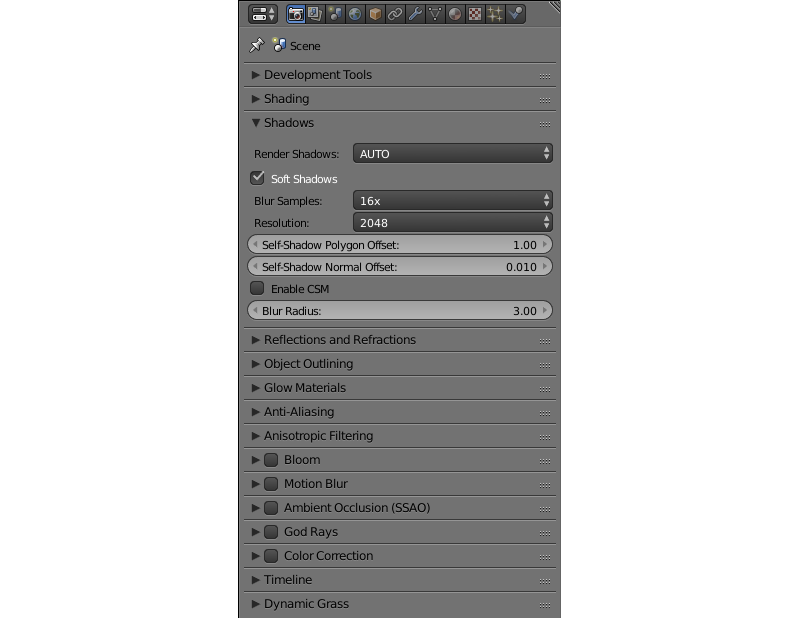

Shadows

Shadows settings. Described thoroughly in its own section.

_images/render_shadows.png

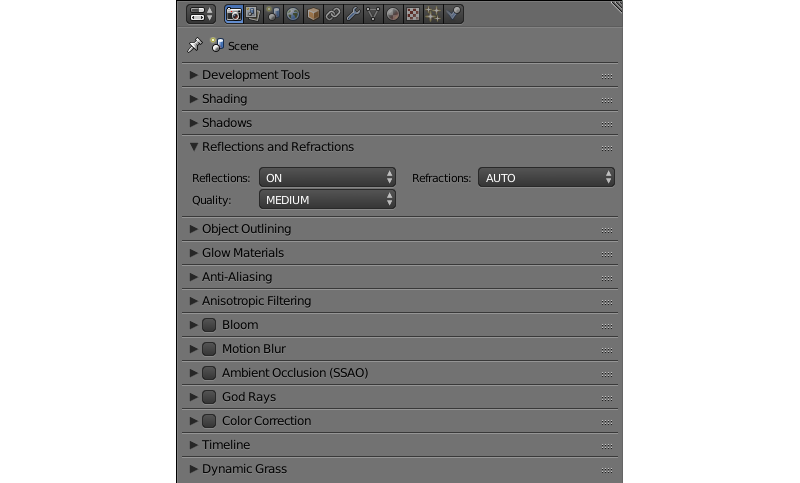

Reflections and Refractions

Reflection and refraction effect settings.

_images/render_reflections_and_refractions.png
Reflection
Reflection effect settings. Can be set to ON, OFF or AUTO. Set to ON by default.
Refraction
Refraction effect settings. Can be set to ON, OFF or AUTO. Set to AUTO by default.
Quality
Quality settings for the reflection effect. Can be set to HIGH (the highest reflection quality), MEDIUM (medium quality) or to LOW (the lowest quality). Set to MEDIUM by default.

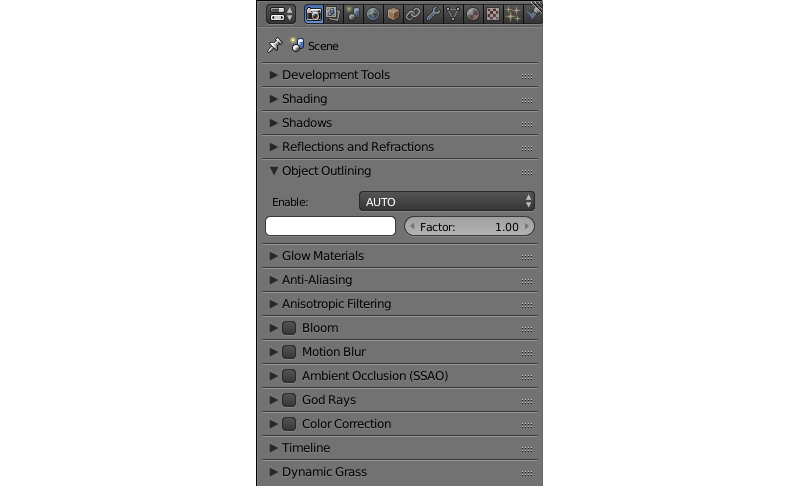

Object Outlining

Outlining effect settings. Described thoroughly in its own section.

_images/render_object_outlining.png

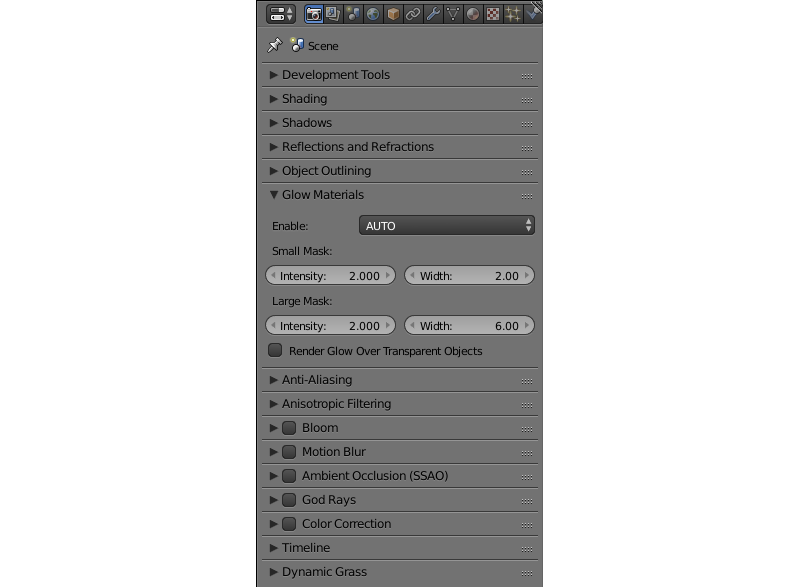

Glow Materials

Glow Material effect settings. Described thoroughly in its own section.

_images/render_glow_materials.png

Note

For dynamically loaded objects, AUTO setting is interpreted as OFF, if no materials with glow are present in the scene. If you are using dynamic loading, you should set this parameter to ON.

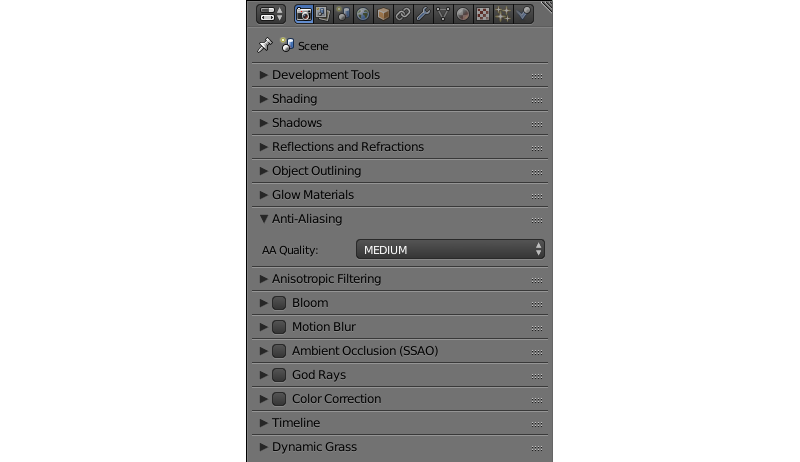

Anti-Aliasing

Anti-Aliasing settings. Described thoroughly in its own section.

_images/render_anti_aliasing.png

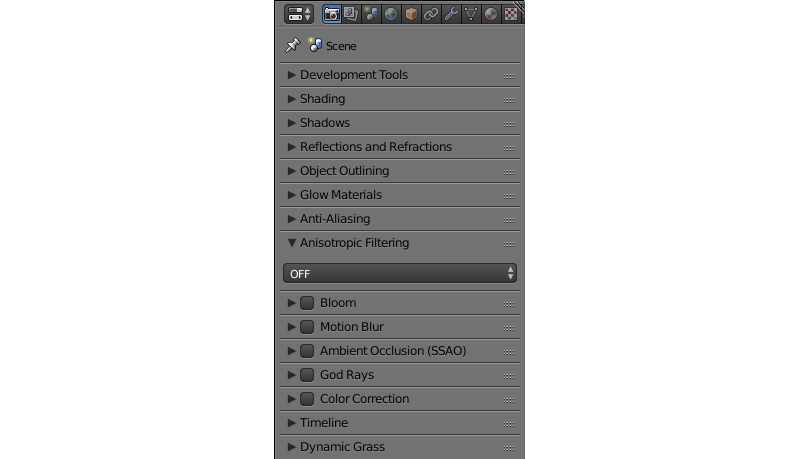

Anisotropic Filtering

This parameter can be used to enable or disable anisotropic filtering and also to set the number of texture samples used for it. By default, anisotropic filtering is disabled.

_images/render_anisotropic_filtering.png

Available values: 16x, 8x, 4x, 2x and OFF (default value).

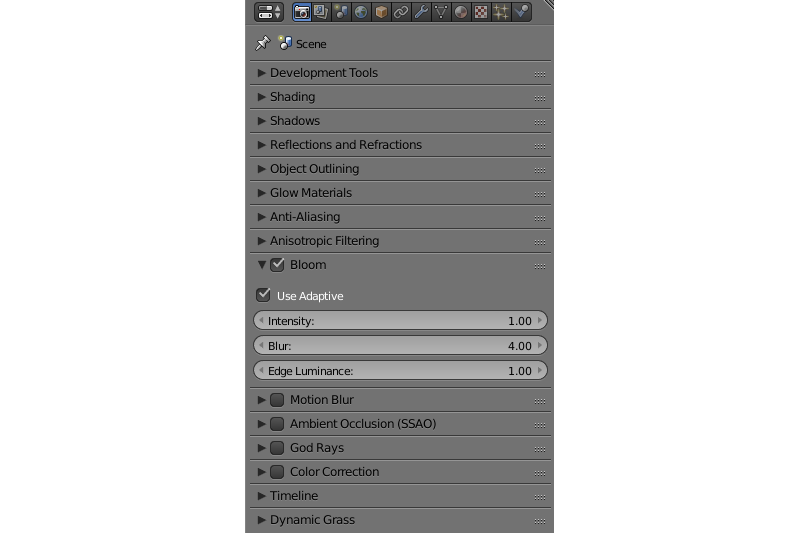

Bloom

Bloom effect settings. Described thoroughly in its own section.

_images/render_bloom.png

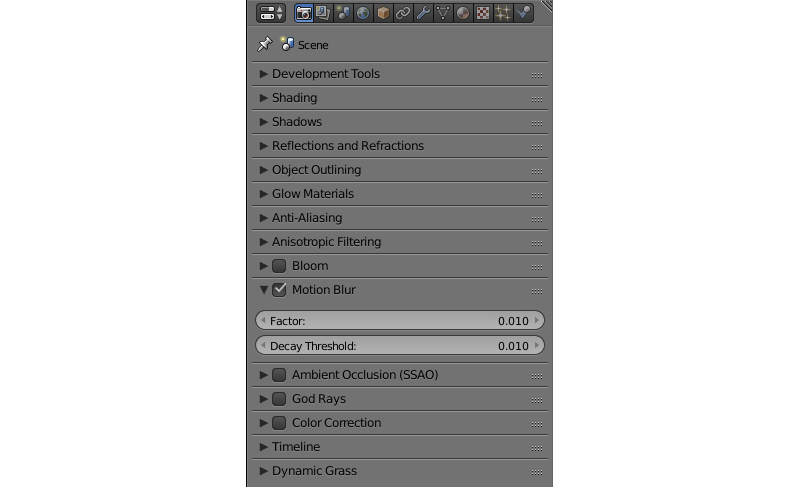

Motion Blur

Motion blur settings. Described thoroughly in its own section.

_images/render_motion_blur.png

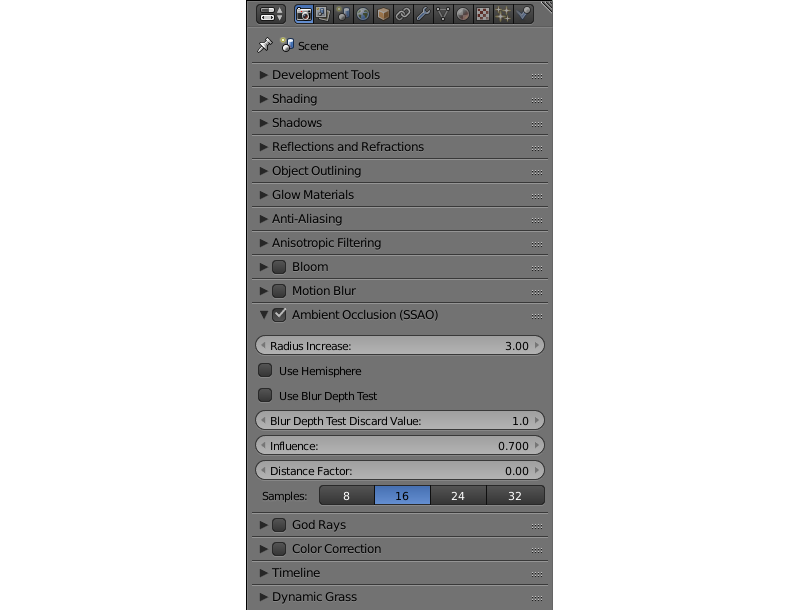

Ambient Occlusion (SSAO)

Screen-space ambient occlusion (SSAO) settings. Described thoroughly in its own section.

_images/render_ambient_occlusion.png

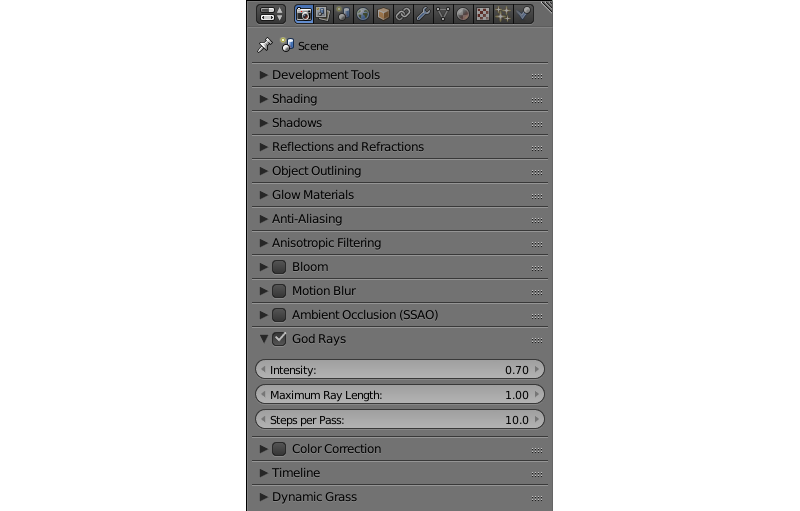

God Rays

God Rays effect settings. Described thoroughly in its own section.

_images/render_god_rays.png

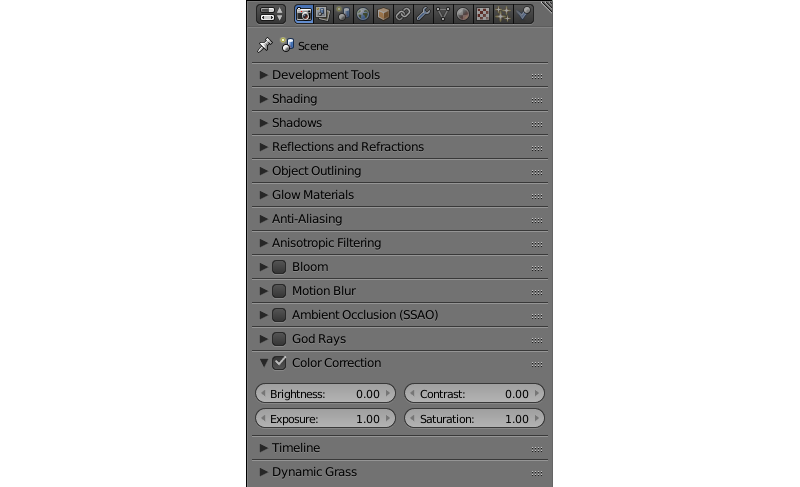

Color Correction

Color correction settings. Described thoroughly in its own section.

_images/render_color_correction.png

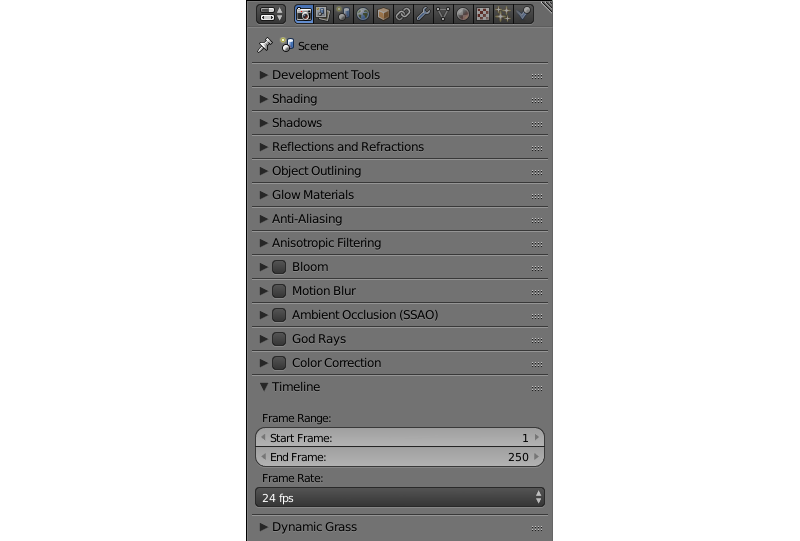

Timeline

Timeline settings.

_images/render_timeline.png
Start Frame
The first frame of the timeline. Set to 1 by default.
End Frame
The last frame of the timeline. Set to 250 by default.
Frame Rate
Number of the frames per second. Set to 24 by default. This parameter only affect the animation playback speed (not the scene itself).

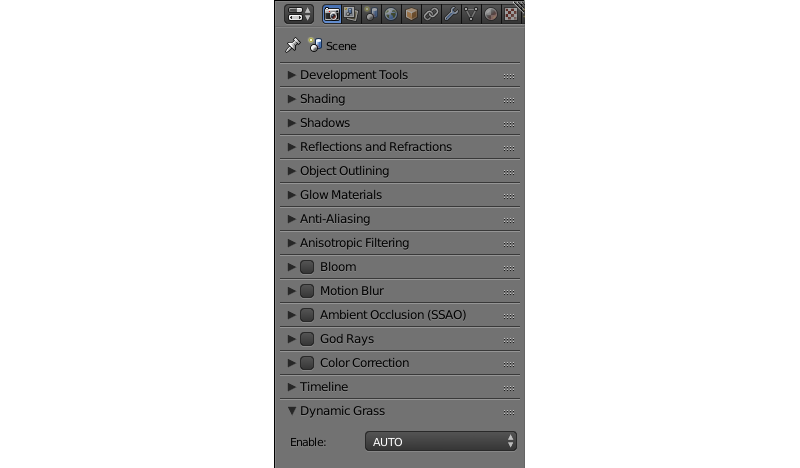

Dynamic Grass

Enables and disables dynamic grass effect.

_images/render_dynamic_grass.png

Possible values: ON, OFF and AUTO. Set to AUTO by default.

Scene Panel

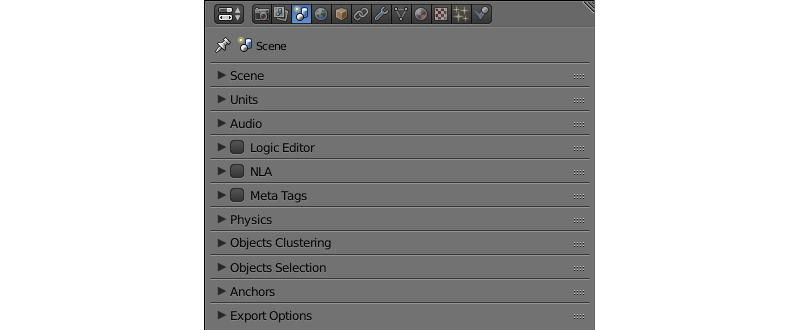

_images/scene.png

The settings that concern scene behavior, including audio, physics and animation settings, are found on this panel.

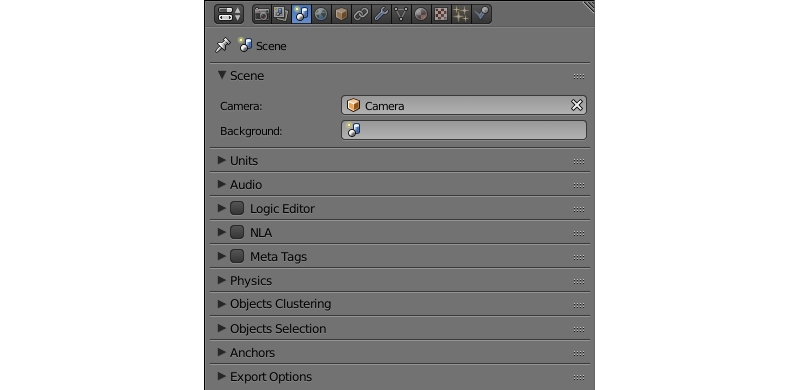

Scene

Scene settings.

_images/scene_scene.png
Camera
A camera that is used to render the scene.

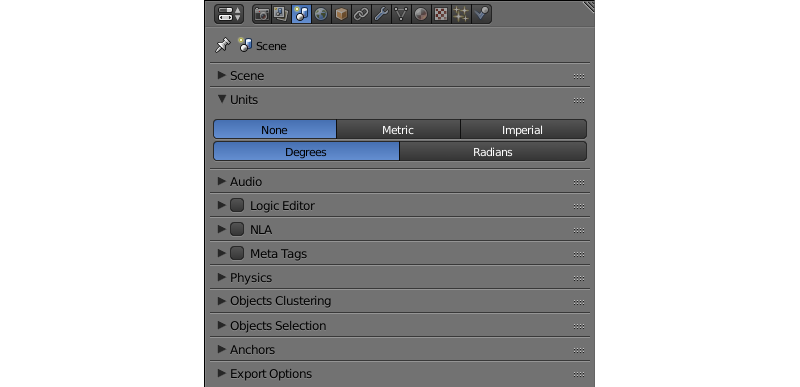

Units

Sets the measurement units used in the scene.

_images/scene_units.png

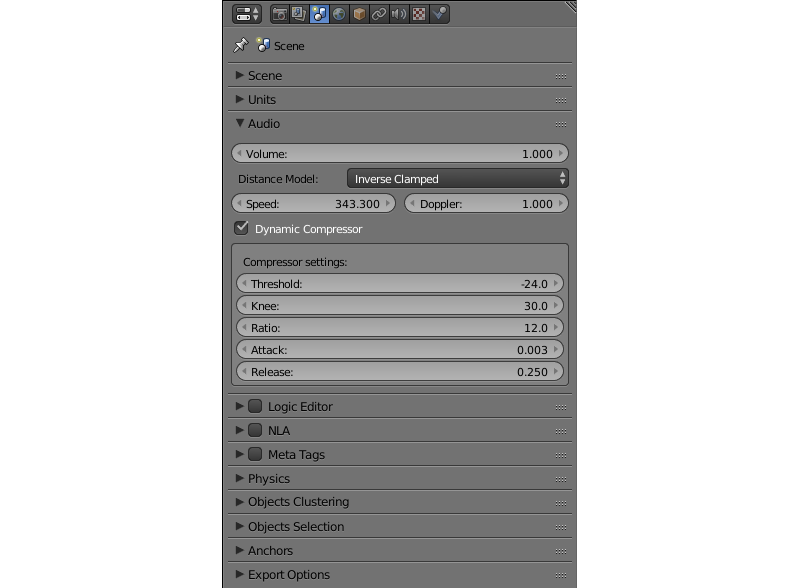

Audio

Audio settings.

_images/scene_audio.png
Volume
The master volume of the sound in the application. This value can vary between 0 and 100. Default value is 1.0.
Distance Model

The distance model used for calculating distance attenuation. Following models are supported by the engine:

None - no distance model is used, the sound has constant volume regardless of the distance.

Exponent Clamped - a clamped exponential distance model.

Linear Clamped - a clamped linear distance model.

Inverse Clamped - a clamped inverse distance model.

The following models are partially supported (work the same way the corresponding Clamped-type models):

Exponent

Linear

Inverse

This parameter is set to Inverse Clamped by default.

Speed
This parameter sets the speed of sound used for Doppler effect calculation. Its value is measured in meters per second and is set to 343.3 by default.
Doppler
This sets the pitch factor for Doppler effect calculation. Its default value if 1.0.
Dynamic Compressor
Compress audio signal’s dynamic range. This feature can be used to make the sound more rich and even. Disabled by default.
Threshold
If the amplitude of the audio signal exceeds the value specified by this parameter, the compressor will reduce its level. Set to -24 dB by default.
Knee
The interval below the threshold where the response curve switches to the decreasing mode. Set to 30 by default.
Ratio
Amount of gain reduction. Set to 12 by default.
Attack
Time (in seconds) that takes the compressor to reduce gain by 10 dB. Set to 0.003 by default.
Release
Time (in seconds) that takes the compressor to increase gain by 10 dB. Set to 0.25 by default.

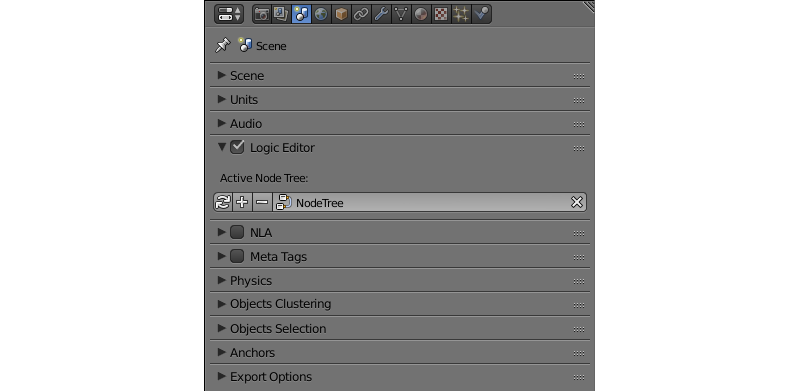

Logic Editor

Settings for the use of the logic node trees (created in the logic editor) in the scene. Disabled by default.

_images/scene_logic_editor.png
Active Node Tree
Node tree that is used in the scene’s playback.

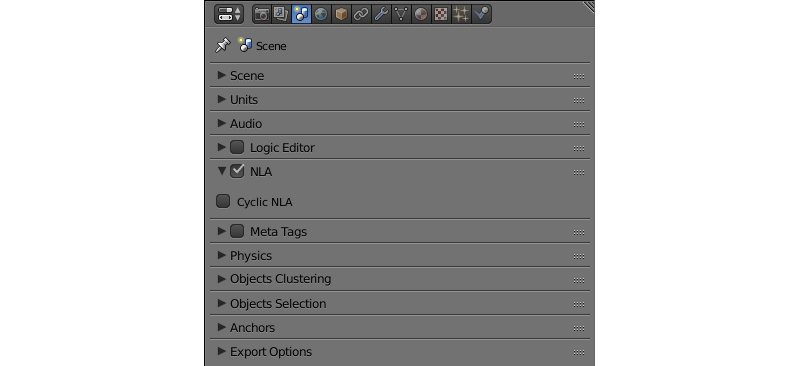

NLA

Non-Linear Animation playback settings. Disabled by default.

_images/scene_nla.png
Cyclic NLA
If this parameter is enabled, NLA animation will be repeated after it is finished.

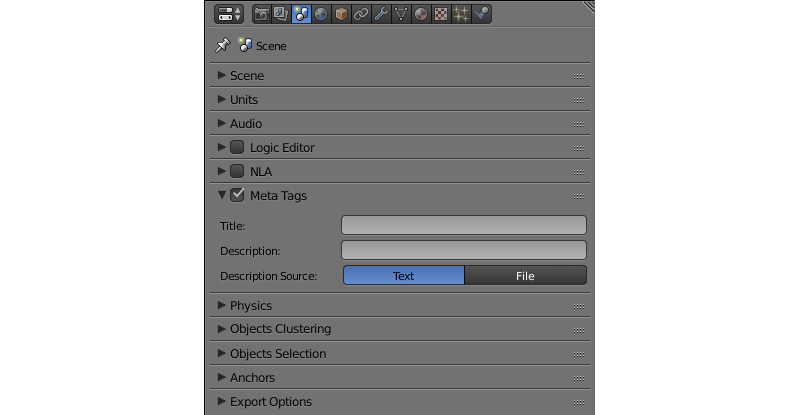

Meta Tags

Application’s meta tags. Can be set up in the same way as object meta tags.

_images/scene_meta_tags.png
Title
The title of the application.
Description

The description of the application. Can be a simple text or a link to a text file (if the Description Source parameter is set to the File value).

Note

If you are using a text file as description source, said file can be imported to Blender using a built-in Text Editor.

Description Source
The source of the application’s description. The description can be loaded from a file or specified directly in the Description field. This parameter can have one of the two values, Text and File, and it is set to Text by default.

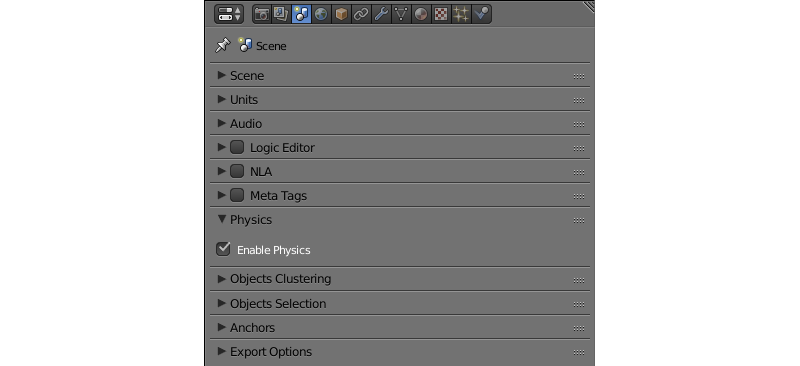

Physics

Physics settings.

_images/scene_physics.png
Enable Physics
Allow using physics in the application. Enabled by default.

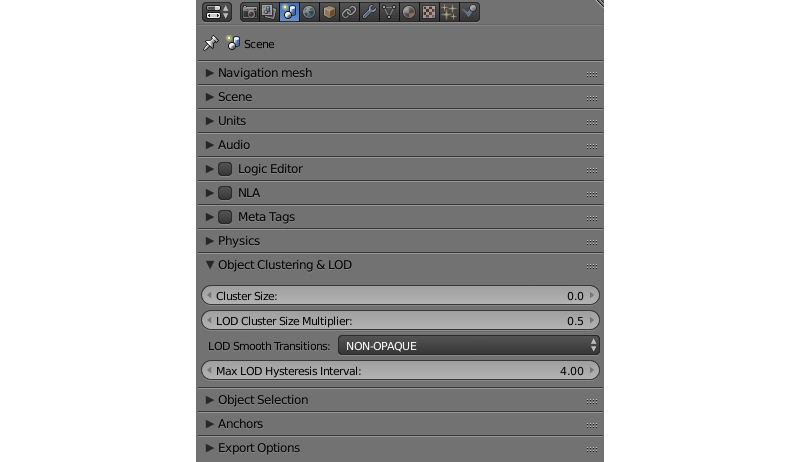

Object Clustering & LOD

Settings for object clustering and Levels Of Detail.

_images/scene_object_clustering.png
Cluster Size
The size of the cluster used for batching (in meters). Can be used for optimization purposes. If this parameter is set to zero, the engine will try to combine all objects in the scene. Set to zero by default.
LOD Cluster Size Multiplier
This parameter is used to subdivide clusters (based on LOD distance specified individually for each object) into smaller ones to make transitions between different levels of detail less noticeable. The size of that smaller clusters is defined by object LOD distance multiplied by the value of this parameter. Higher values lead to bigger clusters which increases performance but makes transition between LODs more noticeable, while lower values make said transitions less noticeable at the cost of decreased performance. Can be used for optimization purposes. Set to 0.5 by default.
LOD Smooth Transitions

Defines what objects will use smooth transitions while switching their LOD levels. Has the following options:

  • OFF - smooth transitions are disabled (fastest).
  • NON-OPAQUE - use smooth transitions for objects with Add, Alpha Clip, Alpha Blend, Alpha Sort and Alpha Anti-Aliasing materials.
  • ALL - smooth transitions will be used for all objects (slowest).

Choosing the “ALL” value can noticeably decrease application performance, so use it with caution. Default value is “NON-OPAQUE”.

Max LOD Hysteresis Interval

The length of the interval (in meters) used for switching LOD levels. The half of this value is added/subtracted from the distance threshold in order to make two different thresholds for switching to the lower and to the higher LOD level. This should reduce LOD “popping” effect. Set to 4.0 by default.

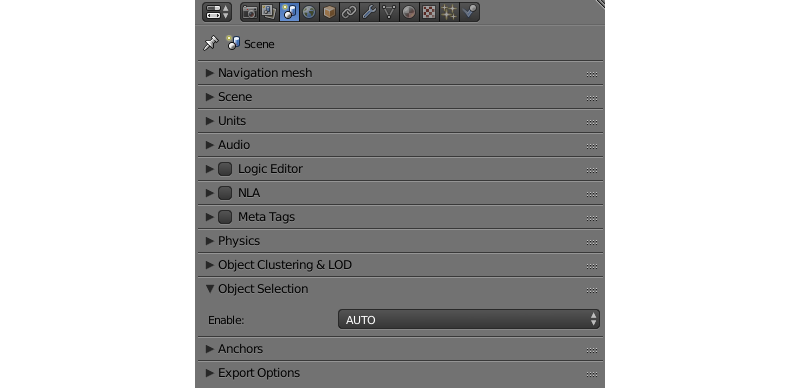

Object Selection

Object selection settings. Objects can be selected both with the API function pick_object() and with the logic nodes.

Note

In the scene viewer, selection is enabled by default. You can turn it off in the Tools & Debug panel.

_images/scene_objects_selection.png
Enable
The parameter that defines if the object can or can’t be selected. It can have ON, OFF or AUTO value. Set to AUTO by default.

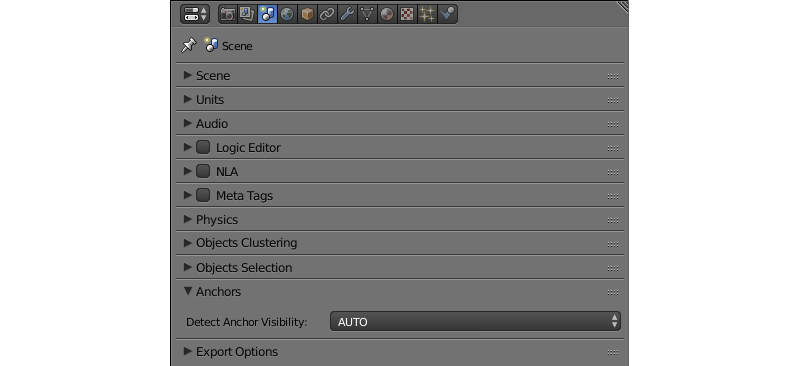

Anchors

Anchor visibility detection settings.

_images/scene_anchors.png
Detect Anchors Visibility
Anchor visibility detection parameter. Can have ON, OFF or AUTO value. Set to AUTO by default.

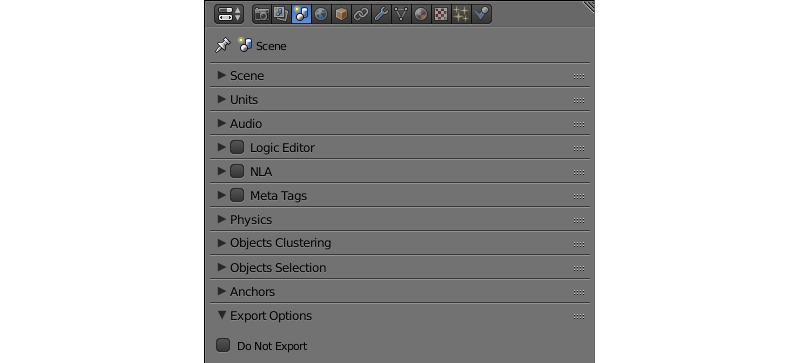

Export Options

Scene settings export parameters.

_images/scene_export_options.png
Do Not Export
If this parameter is enabled, scene settings will be ignored during export.

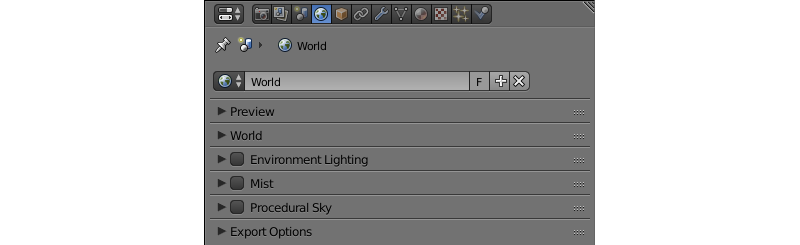

World Panel

_images/world.png

Environment settings such as settings for sky, mist and such are found on this panel.

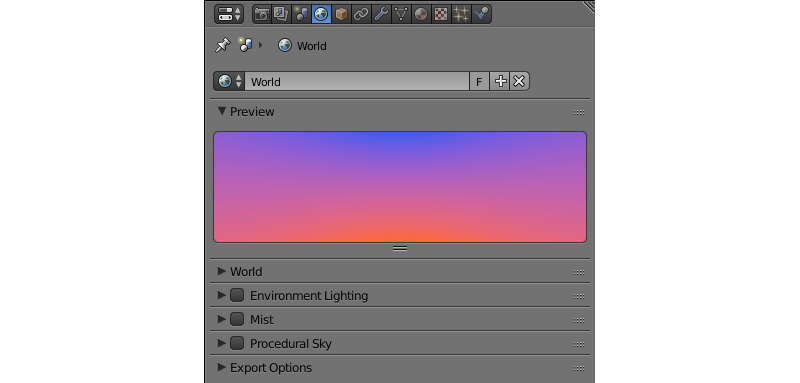

Preview

Environment preview.

_images/world_preview.png

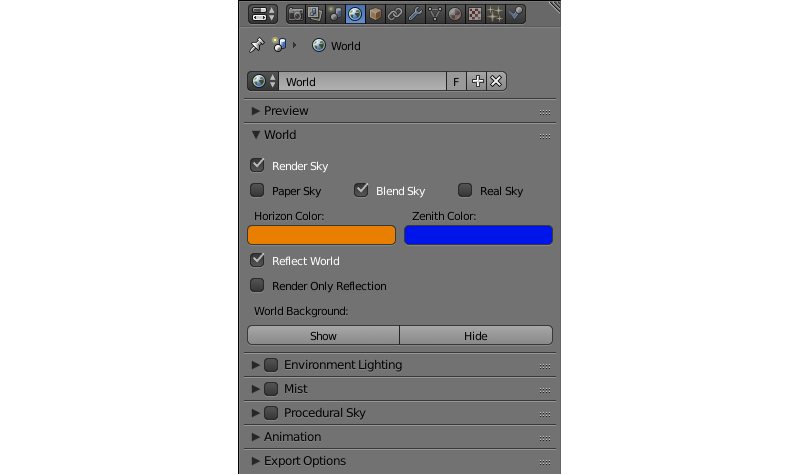

World

Sky settings.

_images/world_world.png
Render Sky
If this parameter is enabled, the engine will render sky in the scene.
Paper Sky
If this parameter is enabled, sky gradient will always be drawn from the top of the screen to the bottom, regardless of the camera’s position and angles.
Blend Sky
Smooth transition between the horizon and zenith colors.
Real Sky
Sky rendering with the horizon affected by the camera angle.
Horizon Color
Sky color at the horizon.
Zenith Color
Sky color in the zenith.
Reflect World
Render the sky while rendering reflections.
Render Only Reflection
Render the sky only while rendering reflections.
World Background
Enables and disables World Background option (located under the Display tab of the 3D View panel). When this option is activated, background colors are rendered in the viewport window the same way they would be in the engine itself.

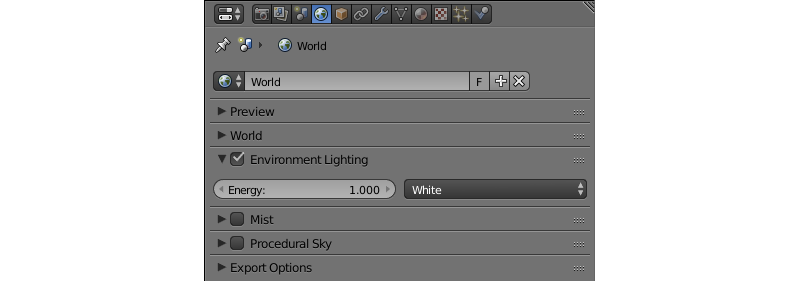

Environment Lighting

Environment lighting settings. Described thoroughly in their own section.

_images/world_environment_lighting.png

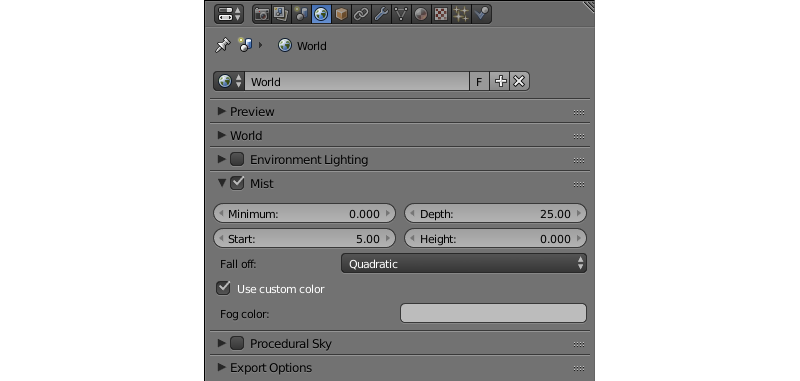

Mist

Mist settings.

_images/world_mist.png
Minimum
Minimum intensity of the mist. Set to zero by default.
Depth
At this distance from the camera the mist effect reaches maximum intensity. Set to 25 by default.
Start
The mist effect starts to appear at this distance from the camera. Set to 5 by default.
Height
This parameter specifies how fast mist intensity decreases as the camera’s altitude increases. Set to 0 by default.
Fall Out
This parameter specifies the rule, according to which the density of the mist changes between the borders (specified by the Start and Depth parameters). Can have one of the following values: Quadratic, Linear, Inverse Quadratic. Set to Quadratic by default.
Use Custom Colors
Can be used to set the color of the mist. Enabled by default. If this parameter is disabled, standard (0.5, 0.5, 0.5) color will be used.
Fog Color
The color of the mist. Can be changed, if the Use custom colors parameter is enabled. Light gray (0.5, 0.5, 0.5) color is used by default.

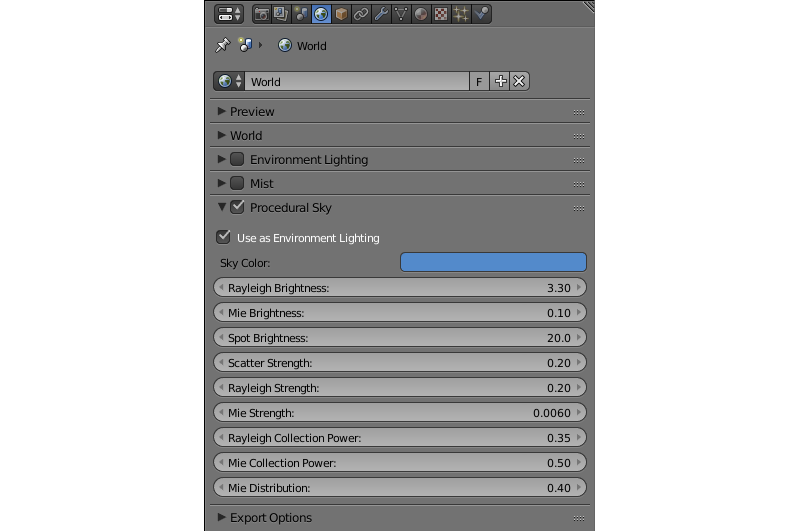

Procedural Sky

Procedural sky settings. Described thoroughly in their own section.
_images/world_procedural_sky.png

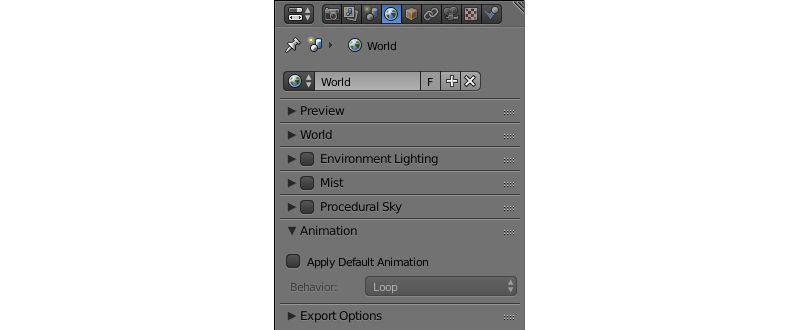

Animation

Environment animation settings.

_images/world_animation.png
Apply Default Animation
If this parameter is enabled, the engine will start playback of the animation assigned to the environment upon loading.
Behavior

Sets the behavior of the default animation. Available options are:

  • Loop - the animation will be played repeatedly.
  • Finish Stop - the animation will be played once.
  • Finish Reset - the animation will be played once, and then switched back to the first frame.

This option is only available if the Apply Default Animation parameter is enabled.

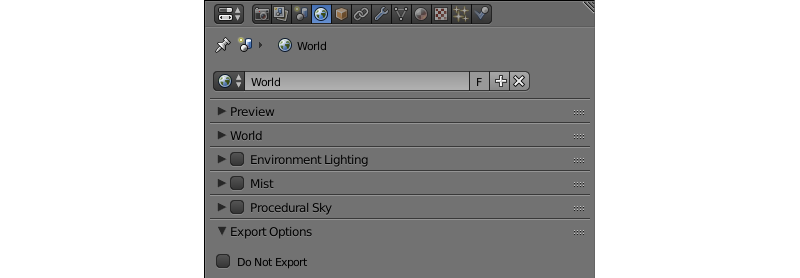

Export Options

Environment parameters export settings.

_images/world_export_options.png
Do Not Export
If this parameter is enabled, environment settings will be ignored during the export.
